Fire Door Frame Design

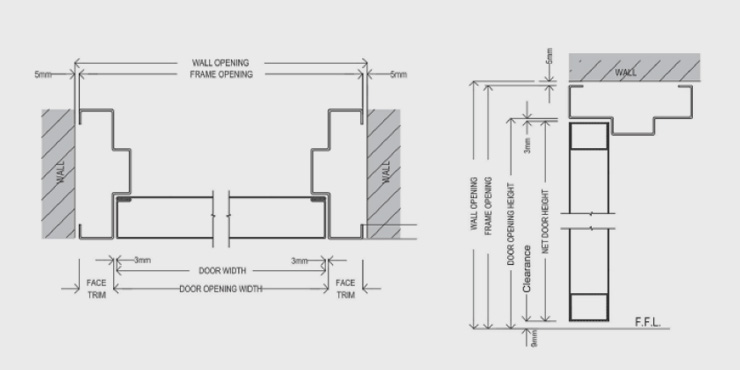

ILLUSTATIVE DOOR OPENING WIDTHS AND HEIGHTS

Door Frames:

Material of Door Frames Galvanized Steel / Stainless Steel
Sheet Thickness (Gauge) 14 / 16 / 18 / 20
Standard Frame Size 100 x 57 mm & 100 x 70 mm
For Single rebate Frame 143mm x 57 mm

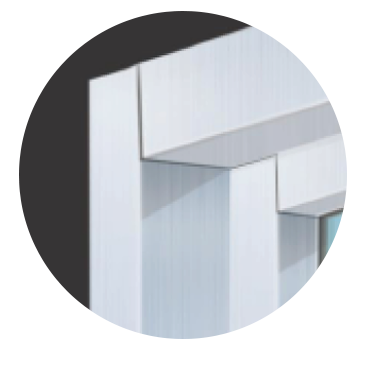

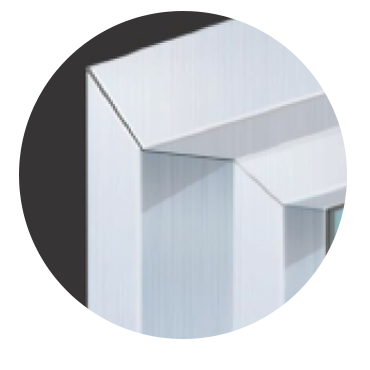

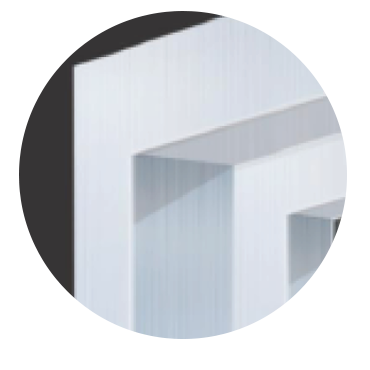

Standard Frame size for double rebate frame Metered - butted - Welded
Frame Assembly 2100 mm / 2200 mm / 2400 mm
Standard Heights in mm (Wall Opening) 2700 mm / 3000 mm

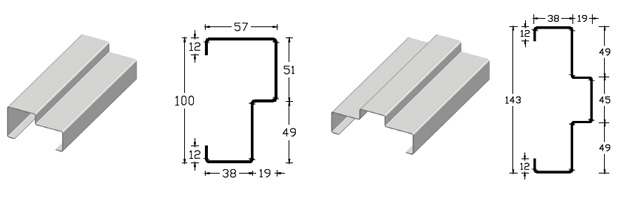

Door Frames Standard Design:

door-frame-design1
