DOORS FOR LIFE

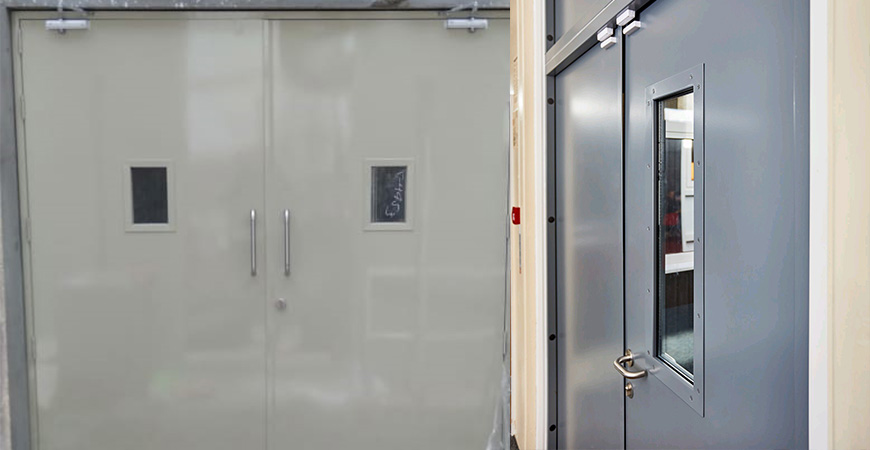

HMPS (Hollow Metal Pressed Steel) Door

HMPS (HOLLOW METAL PRESSED STEEEL) DOOR

Manufactured with rust resistant galvanized steel, doors are available in 20 gauge, 18 gauge and 16 gauge. All doors are constructed to meet the most rigid architectural demands. Made with high density honeycomb core laminated under pressure along with interlocking lock seam edges which ensure durability.

hmps-doors-1
Shivshakti Fabricators is one the leading manufacturer and supplier for HMPS (Hollow Metal Pressed Steel) Door in India. Constructed from 1mm thick (20 gauge) Mild Steel Sheet formed to provide a 40/42mm thick fully flush, double skin door shell with lock seam joints at stile edges. Internal Reinforcements are provided at top, Bottom and Stile Edges.

Features:

  • Low cost.
  • Free from pests & termites.
  • Safety from burglars.
  • Protection from atmospheric conditions.
  • Easy to install.

Applications:

  • Sanitation Projects & Highway Projects.
  • Defense housing projects.
  • Economical government Projects.
  • Prefeb Housing & Site Offices.
  • Temporary Housing Scheme.
  • Overview
  • Technical Specifications

GENERAL DOORS (HMPS DOORS)

Shiv Shakti Fabricators General Doors are the most preferred choice for numerous commercial and industrial establishments due to their advanced safety and security features. Ideal for office entrances, factories, educational institutions, hospitals, hotels and other application areas, these doors are low on maintenance and high on aesthetics. Manufactured with highest standards of quality parameters, these eco-friendly doors have developed a reputation for functionality and long-lasting durability. Factory-finished with polyurethane paint, these doors come in a wide range of finishes including, wood grain.

Design Highlights:

  • Available in Galvanized, Mild Steel and Stainless Steel.
  • Clear Vision lite for any size.
  • Factory prepped to receive all type of hardware.
  • High Aesthetic and Robust Structure.
  • Factory finished for Primer and Paint Finish.

Door Leaf

Shutter sheet thickness is 0.80mm Infill material is Honeycomb / Mineral Wool (48 kg /cu.m).

Door Frame

Frame sheet thickness is 1.20mm.

Finish

General Doors are Pure Polyester Powder Coated / PU 60-80 Micron. They also include provision for fixing Panic Bar, SS D-Type or Lever Handle with Lock, SS Push Plate, SS Flush Bolt, SS Ball Bearing Hinges, Door Closers, & Anchor fasteners with Cap etc.

Technical Specification Sheet - Fire Hydrant Shaft Doors

FIRE HYDRANT SHAFT DOOR MATERIAL – Door Shutters and Frames

SHUTTERS:

The door shutters are to be made from 16 gauge (1.6mm) zinc coated Galvanised Steel Sheets with zinc coating of 80-120 g/Sqm.The glass used shall be of minimum 4 mm thk clear float glasses with spacer frame all around and desiccants in it.The fixtures shall be provided as specified in the drawings or as required by the Project Manager. The word “Fire shall be written on the glass as shown in the drawings or as per the requirements of the local CFO.

FRAMES:

The frames shall be made of 16 gauge (1.6 mm) Zinc coated Galvanised Steel Sheets with zinc coating of 80-120 g/Sqm pressed bent to shape using bending machine and mitred with square edges.

Painting:

Frames and shutters shall be painted with epoxy paint. The paint shall be done with two coats over a single coat of primer paint over the surface. The surface to be painted shall be free from any rust, grease or any undulation.
